Ionizing Sprayer (Updated!!!)

Mobile solution for de-stat. Provides a focused force of anti-static air to a specific target. Excellent for tough-to-reach areas or products with complex geometry.

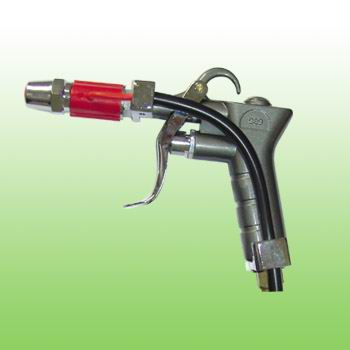

Westmont’s Ionizing Sprayer is a static elimination device which delivers a balanced ion stream to neutralize static charges in wide and focused areas

They remove contaminants attraction and neutralize static charges from wide, focused, or hard-to-reach area so as to increase productivity and yield in manufacturing.

They are ideally used in industrial environments such as delicate electronic products, electronic assembly line, medical device manufacturing and assembly lines, printing, packaging, and small part injection molding.

Features:

Two airflow output

Continuously adjust airflow speed

Built-in blower and power supply.


Technical Parameters:

Operating voltage

110V/60Hz or 220V/50Hz

Current Consumption

0.9A or 0.4A

Operating Temperature

0~50℃

Size

600MM(L)* 90MM(W)* 170MM(H)

Weight

7.5KG

Air Volume

80~220 CFM

Ion Balance

0V?0V

Air Coverage

40CM*90CM


Testing Result：

                             Testing Conditions

Testing voltage: 1KV~100KV; Operating voltage: 110V/220V; Temperature: 22℃

Distance

300MM

600MM

900MM

1200MM

Left 300MM



1.2s

2.3s

2.7s

4.8s

Center

2.7s

1.6s

3.1s

3.5s

Right 300MM





1.1s



2.0s



2.9s



4.4s



1.      Distance measured in MM, decay time measured in seconds

2.      Test data is available from ME268A charged plate analyzer

3.      Test figures are subject to the variation in the atmospheric conditions


Call (1-800-860-3080) or email (westmontinc@gmail.com) to design an anti-static electricity brush solution that is right for your application.
